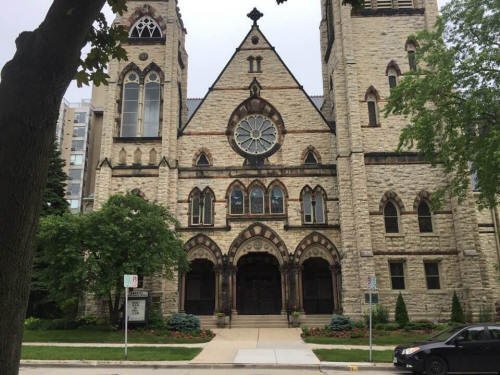

Immanuel Presbyterian Church

1110 North Astor Street
Milwaukee, WI 53202

Builder: Fabry, Inc., ca. 2009
Originally E. & G.G. Hook & Hastings, Opus 1045, 1881;
Wangerin Organ Co., Opus 466, 1926
Manuals: 3
Ranks: 69
Action: Electropneumatic

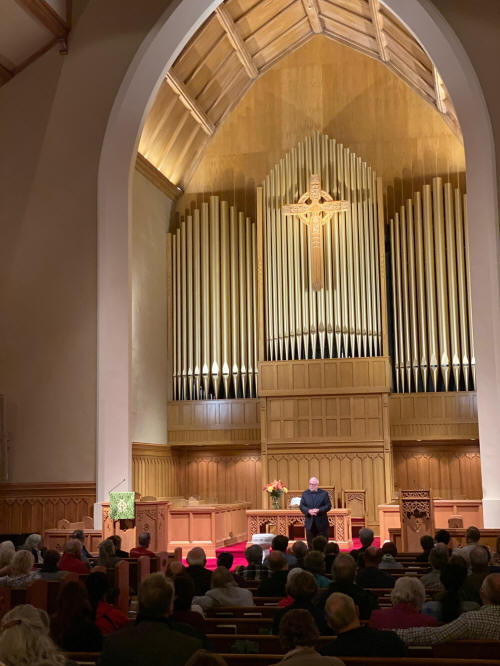

Notes: This instrument was modified in 1978 by American Organ Supply Co. and by William Hansen in 2002. In 2005, Fabry replaced the old 4-manual console with a new 3-manual console and added a 16' Bassoon (Sw) and an 8' Cor d'Amour (String). In 2009, Fabry releathered the instrument and in 2013 installed a new 43-pipe facade using 16' Diapason and 16' Violone pipes. The organ retains many voices from the Hook-Wangerin instrument.

GREAT ORGAN
16' First Open Diapason (Ped 1st Open)
16' Second Open Diapason 32 (rest from Ped Violon)
16' Bourdon 61
16' First Gamba (Ped 1st Gamba)
8' First Open Diapason (Ped 1st Open)
8' Second Open Diapason 61
8' Doppel Flöte 61
8' Chimney Flute 61
8' First Gamba (Ped 1st Gamba)
8' Second Gamba 61
8' Gemshorn 61
8' Aeoline 49 (TC)
4' Octave 61
4' Harmonic Flute 61
2-2/3' Twelfth 61
2' Fifteenth 61
2' Waldflöte 61
IV Mixture 244
16' Double Trumpet 61
8' Tuba Mirabilis 61 (Ped 16' Trombone)
8' Trumpet 61
4' Clarion 61
    Cathedral Chimes (25 tubes)

SWELL ORGAN (enclosed)
16' Lieblich Gedeckt 61
8' Open Diapason 73
8' Stopped Diapason 73
8' Viole de Gambe 73
8' Viole Celeste 61
4' Octave 73
4' Flauto Traverso 73
2-2/3' Nazard 61
2' Flautino 61
1-3/5' Tierce 61
III Mixture 183
16' Bassoon (1-12 electronic)
8' Trumpet 73
8' Hautbois 73
8' Vox Humana 61
4' Clarion 73
    Tremolo

CHOIR ORGAN (enclosed)
16' Violon 61 (1-12 electronic, ext Violon)
8' Geigen Principal 73
8' Melodia 73
8' Viol d’Amour 73
8' Viol Celeste 61
4' Octave 73
4' Stopped Flute 73
2' Piccolo 61
1-1/3' Larigot 61
II Mixture 122
8' Clarinet 61
8' Tuba Mirabilis (Ped 16' Trombone)
    Tremolo
    Harp Celesta (49 bars)
    Cymbelstern (4 bells)
    Mockingbird (3 pipes)
    Chimes

STRING ORGAN (enclosed, floating)
8' Violin Cello 73
8' Cello Celeste 8' 61
8' Violin Sordo 73
8' Violin Celeste 61
8' Dulciana 73
8' Cor d’Amour 73
    Tremolo

PEDAL ORGAN
32' Contre Bourdon (electronic, ext Gt)
32' Lieblich Gedeckt (wired, Sw)
32' Violon (resultant, Ped 16' Violon)
16' First Open Diapason
16' Second Open Diapason
16' Principal
16' First Gamba
16' Violon
16' Bourdon (Gt)
16' Lieblich Gedeckt (Sw)
8' Octave
8' Bass Flute
8' Violin Cello
8' Holzgedeckt
4' Fifteenth
III Mixture
32' Contra Trombone (1-12 electronic, ext)
32' Bombarde (wired, Gt Double Trumpet)
16' Trombone
16' Double Trumpet (Gt)
16' Bassoon (Sw)
8' Tromba (ext Trombone)
4' Tromba (ext Trombone)
