Church of the Gesu

1145 West Wisconsin Avenue
Milwaukee, WI 53233

Builder: Schantz Organ Co., Opus 2300, 2011
Originally Geo. Kilgen & Son. 1955
W.W. Kimball Co., ca. 1890s

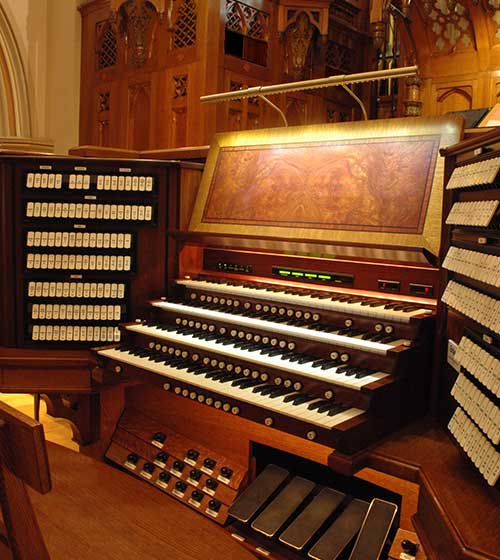

Manuals: 4
Ranks: 115
Pipes: 6804
Action: Electropneumatic

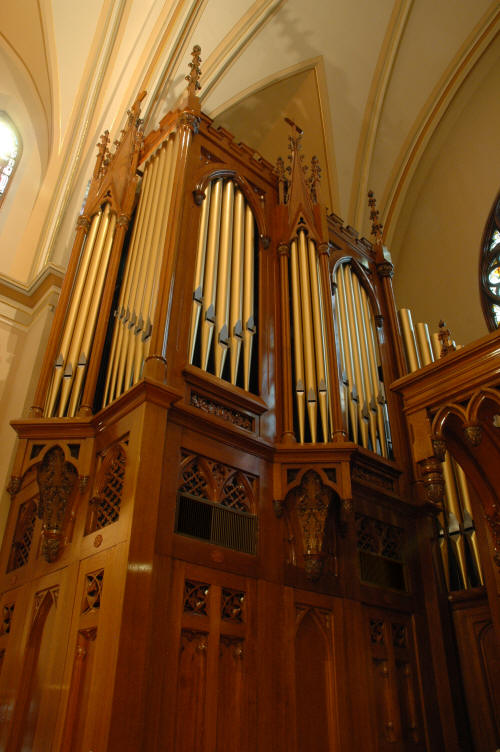

Notes: The Schantz organ company undertook a complete rebuild of the organ, expanding it from 67 to 115 ranks. The Kimball casework and much of the Kimball/Kilgen pipework were retained.

GREAT ORGAN
16' Diapason 73
16' Violone 61
8' Diapason I 61
8' Diapason II --
8' Gambe 61
8' Dulciane 61
8' Flûte Harmonique 61
8' Bourdon 61
4' Octave 61
4' Principal 61
4' Flûte Octaviante 61
4' Flûte Cheminée 61
2-2/3' Quinte 61
2' Super Octave 61
1-3/5' Tierce 61
V Fourniture 1-1/3' 305
IV Cymbale 1/2' 244
8' Trompete 61
8' Tromba Real (Tr)
8' Trompette d'Orchestre (Tr)
    Tremulant
    Chimes (Sw)

SWELL ORGAN
16' Bourdon 61
8' Diapason 61
8' Salicional 61
8' Voix Celeste 61
8' Muted Viole 61
8' Muted Viole Celeste 61
8' Bourdon 61
8' Ludwigtone 61
4' Octave 61
4' Flûte Octaviante 61
2-2/3' Nasard 61
2' Octavin 61
1-3/5' Tierce 61
V Plein Jeu 2' 305
16' Waldhorn 73
16' Basson 73
8' Trompette 61
8' Cornopean --
8' Hautbois --
4' Clairon 61
8' Voix Humaine 61
    Tremulant
    Chimes 21

CHOIR ORGAN
16' Dulciana 73
8' Viole Diapason 61
8' Gambe 61
8' Gambe Celeste 61
8' Flûte Ouverte 61
8' Flûte Céleste (TC) 49
8' Bourdon 61
8' Dulciana --
8' Unda Maris 61
4' Octave 61
4' Flûte Traversière 61
4' Flûte à Fuseau 61
2-2/3' Nasard 61
2' Octavin 61
1-3/5' Tierce 61
1-1/3' Quinte 61
1-1/7' Septime 61
1' Fife 61
8/9' Neuvieme 61
IV Fourniture 1-1/3' 244
III Cymbale 2/3' 183
8' Trompette 61
4' Clairon 61
8' Clarinet 61
8' Trompette d'Orchestre (Tr)
    Tremulant

SOLO ORGAN
16' Bass Viole 73
8' Grand Diapason 61
8' Violoncello 61
8' Violoncello Celeste 61
8' Bourdon 61
4' Octave Major 61
4' Flûte Ouverte 61
VII Plein Jeu 2' 427
16' Bombarde 85
8' Trompette 61
8' English Horn 61
8' French Horn 61
4' Clarion --
    Tremulant
    Chimes (Sw)

ECHO
8' Diapason 61
8' Viole Sourdine 61
8' Voix Angelique 61
8' Cor de Nuit 61
8' Flûte Conique 61
8' Flûte Céleste (GG) 54
4' Principal 61
4' Chimney Flute 61
8' Voix Humaine 61
    Tremulant

ECHO PEDAL
16' Bourdon 32
8' Cor de Nuit (Echo)
4' Flûte (Ch)

TROMBA
8' Tromba Real 61
8' Trompette d'Orchestre 61

PEDAL ORGAN
32' Contre Violone 12
32' Contre Bourdon 56
32' Resultant --
16' Contrebasse 32
16' Principal 44
16' Diapason (Gt)
16' Violone (Gt)
6' Bass Viole (So)
16' Dulciana (Ch)
16' First Bourdon --
16' Second Bourdon (Sw)
8' Octave --
8' Diapason (Gt)
8' Cello (Gt)
8' Dulciana (Ch)
8' First Bourdon --
8' Second Bourdon (Sw)
4' Octave 32
4' Cantus Flute 32
IV Fourniture 2-2/3' 128
32' Contre Bombarde 44
32' Grand Cornet --
16' Bombarde --
16' Bombarde (So)
16' Waldhorn (Sw)
16' Basson (Sw)
8' Tromba 44
8' Trompette (So)
8' Cornopean (Sw)
4' Clarion --
8' Trompette Real (Tr)
8' Trompette d' Orchestre (Tr)
    Chimes (Sw)
