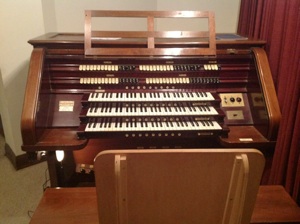

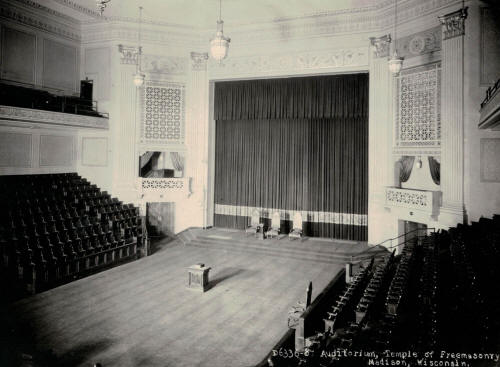

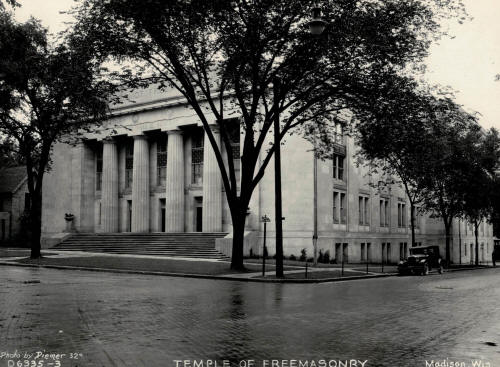

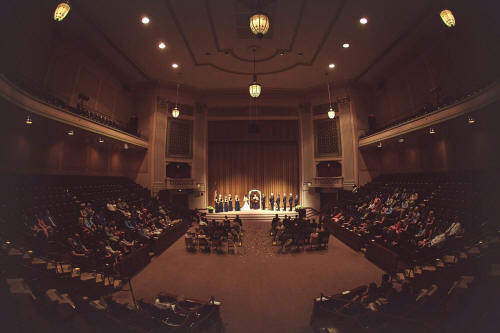

Builder: Wangerin Organ Co., Opus 387, 1925 Manuals: 3 Ranks: 37 Action: Electropneumatic Notes: The Wisconsin Masonic Center, formerly Madison Masonic Center, is now an event space. The Auditorium has original fixtures and a proscenium stage with seating for up to 1000. The organ received OHS Citation number 119. The instrument is being maintained and is in regular use. GREAT ORGAN 16' Double Open Diapason 85 8' First Open Diapason 73 8' Second Open Diapason (16') -- 8' Doppel Flute 73 8' Gambe 73 8' Lieblich Flute 73 4' Harmonic Flute 73 4' Principal 73 2-2/3' Quinte 61 2' Principal 61 8' Trumpet 73 8' Chimes 8' Harp Gt to Gt 16 4 Sw to Gt 16, 8, 4 Ch to Gt 16, 8, 4 Echo to Gt 8 SWELL ORGAN 16' Bourdon 73 8' Open Diapason 73 8' Stopped Diapason 73 8' Viole d'Orchestre 73 8' Voix Celeste (TC) 61 4' Flauto Traverso 73 4' Violina 73 III Dolce Cornet 183 2' Flautino 61 8' French Horn 73 8' Oboe 73 Tremulant Swell to Swell 16, 4 Echo to Swell 8 Unison Off CHOIR ORGAN 16' Contre Viole 73 8' Stopped Diapason 73 8' Concert Flute 73 8' Flute Celeste (TC) 61 8' Dulciana 73 4' Flute d'Amour 73 2' Piccolo 61 8' Clarinet 73 8' Tuba Mirabilis 73 8' Harp Tremulant Ch to Ch 16, 4 Sw to Ch 16, 8, 4 Echo to Choir 8 Unison Off ECHO ORGAN (floating) 8' Fern Flute 8' Cor Angalis 8' Vox Humana 8' Chimes PEDAL ORGAN 32' Diapason Resultant -- 16' Open Diapason Major 44 16' Open Diapason Minor (Gt) 16' Bourdon 44 16' Lieblich Gedakt (Sw) 16' Contre Viole (Ch) 8' Octave (Gt) 8' Flute (fr. Bourdon) 8' Flute Major (fr. Open Diapason Major) 8' Gambe (Gt) 16' Trombone 32 Gt to Ped 8, 4 Swl to Ped 8 Ch to Ped 8 Echo to Ped 8 8 divisionals per division |
![]() |
![]() |
|
![]() |
|
![]() |
|
