Trinity Lutheran Church

1314 East Lexington Boulevard
Eau Claire, WI 54701

Builder: Steiner-Reck Organ Co., 1979
Manuals: 2
Ranks: 28
Action: Mechanical

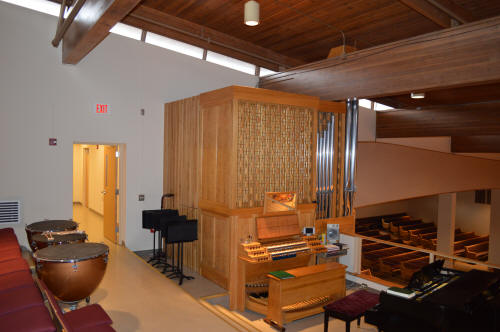

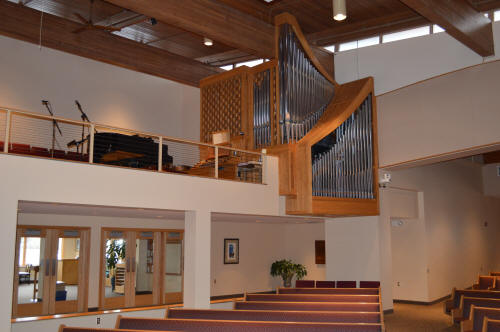

Notes: The organ is in a corner of the balcony, to the right of the chancel. Very dry acoustic even though the room has been enlarged. The Swell is immediately above the keydesk. The Pedal and Great are at 90-degrees to the keydesk, on the balcony rail; the Pedal is below and in front of the Great. The Subbass is on pneumatic relay action with most pipes mounted horizontally. The largest stopped metal pipes are aluminum, some mitered and partially horizontal on the roof. The entire organ is cone tuned. The stop action makes a lot of noise. Key action is by wires and pulleys. Keyboards and Fagott resonators have been replaced.

GREAT ORGAN
16' Gedackt Pommer
8' Principal (facade)
8' Rohrfloete
4' Octave
2' Spitzoctave
II Sesquialtera 2.2/3'
III-VI Mixture 1.1/3'
8' Trumpet

SWELL ORGAN
8' Spitzgedackt
8' Salicional
4' Metal Floete
2' Italian Principal
1.1/3' Quint
II-III Mixture 2/3'
8' Krummhorn
    Tremulant

PEDAL ORGAN
16' Subbass
8' Principal Bass
8' Subbass (ext)
4' Choral Bass II
16' Fagott (facade)
