Zion Evangelical Lutheran Church

912 Oneida Street
Appleton, WI 54911

Builder: Russell & Co. Pipe Organ Builders, Opus 57, 2016
Originally: John H. Sole, 1903, modified by McGaw, 1946; Möller Organ Co., Opus 6007, 1931
Manuals: 4
Ranks: 49
Pipes: 2946
Action: Electropneumatic

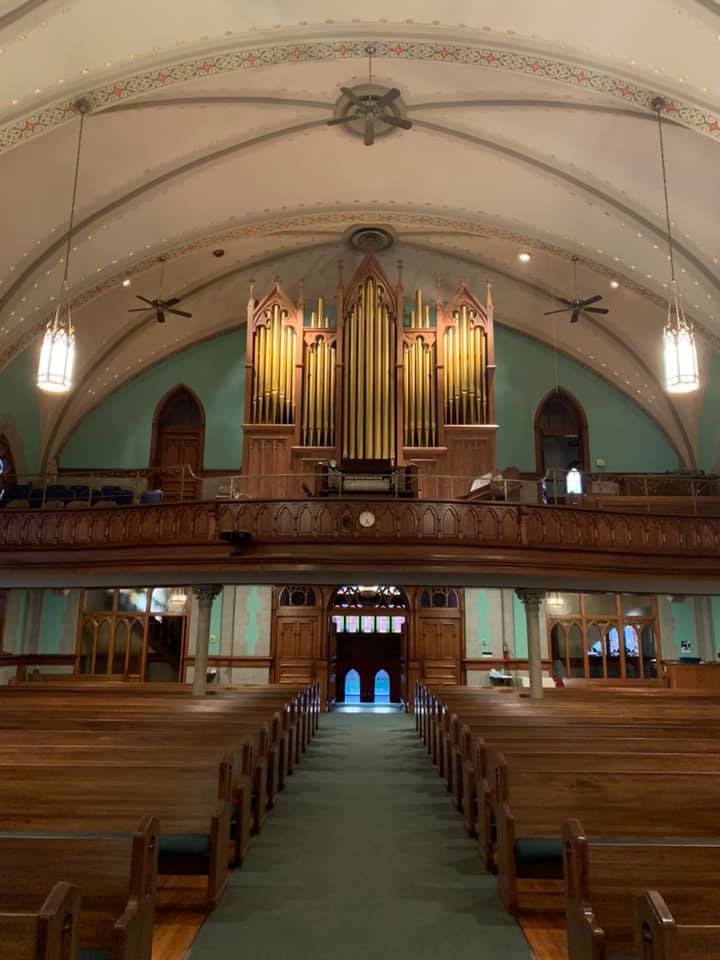

Notes: The core of the instrument is historic pipes from the original Sole organ along with reeds, strings, and Harp from Möller Organ Co., Opus 6007, 1931, purchased from First Baptist Church, Elmira, New York. The original voicing of Richard O. Whitelegg of the Möller company has been preserved. The instrument is located in the balcony behind new casework built by local craftsman Duane Saultzbaugh.

GREAT ORGAN
16' Contra Diapason 24 [1]
8' Principal 61
8' Rohrfloete 61
4' Octave 61
4' Nachthorn 61
2.2/3' Twelfth 61
2' Fifteenth 61
1.3/5' Seventeenth 61
1.1/3' Mixture IV 244

[1] extension of Pedal Choralbass

SWELL ORGAN
16' Lieblich Gedeckt 24
8' Open Diapason 61
8' Bourdon 61
8' Viola 61
8' Viola Celeste 61
4' Principal 61
4' Koppelfloete 61
2.2/3' Nasard 61
2' Flautino 61
1.3/5' Tierce 61
2' Plein Jeu IV-V 296
16' Contra-Oboe 12
8' Trompette 61
8' Oboe 61
4' Clarion 12
8' Vox Humana 61
    Vox Tremulant
    Tremulant
    Sw 16, 4
    Swell Off

CHOIR ORGAN
16' Viole Aetheria 12
8' Harmonic Flute 49 [2]
8' English Diapason 61
8' Quintadena 61
8' Gemshorn 61
8' Gemshorn Celeste 61
4' Gemshorn 12
16' Bass Clarinet 12
8' Tromba 61
8' Tuba (Solo)
8' Clarinet 61
    Tremulant
    Harp (Solo)
    Chimes 25
    Choir 16, 4
    Choir Off

[2] 1-12 common with Gemshorn

SOLO I
8' Diapason (unenclosed) 61
8' Flauto Mirabilis 49 [3]
8' Gamba 61
8' Gamba Celeste 61
4' Hohlpfeife 61
8' French Horn 61
16' Tuba Profunda 12
8' Tuba Mirabilis 61
4' Tuba Clarion 12
    Tremulant
    Solo 16, 4
    Solo Off

[3] 1-24 common with Pedal Open Wood

SOLO II - Borrows
16' Gemshorns II (Ch)
8' Gemshorns II (Ch)
4' Gemshorns II (Ch)
8' Koppelfloete (Sw)
4' Rohrfloete (Gt)
2' Blockfloete (ext Gt)
8' Tromba (Ch)
8' Trompette (Sw)
8' Oboe (Sw)
8' Clarinet (Ch)
16' Vox Humana (Sw)
8' Vox Humana (Sw) [4]
    Chimes (Ch)
    Harp 61 bars

[4] draws Vox Tremulant
Solo II is not affected by couplers
Zimbelstern on blind reversible

PEDAL ORGAN
32' Contrabass (resultant)
32' Contra Bourdon (resultant)
16' Open Wood Diapason 24
16' Contra Diapason (Gt)
16' Subbass 32
16' Lieblich Gedeckt (Sw)
16' Viole Aetheria (Ch)
8' Diapason 32
8' Bourdon 32
8' Lieblich Gedeckt (Sw)
8' Gemshorn (Ch)
4' Choral Bass 44
4' Nachthorn 32
2.2/3' Mixture V 160
32' Contra Tuba (ext Solo) 12
32' Contra Fagotto (resultant)
16' Tuba Profunda (Solo)
16' Contra-Oboe (Sw)
16' Bass Clarinet (Ch)
8' Tromba (Ch)
8' Trompette (Sw)
4' Tromba Clarion (Ch)
4' Clarinet (Ch)
    Chimes (Ch)
    Pedal Divide
    Pedal Silent

COUPLERS
Gt to Ped 8
Gt to Solo 8
Sw to Ped 8, 4
Choir to Ped 8
Solo to Ped 8, 4
Sw to Gt 16, 8, 4
Choir to Gt 16, 8, 4
Solo to Gt 16, 8, 4
Sw to Choir 16, 8, 4
Solo to Choir 16, 8, 4
Sw to Solo 16, 8, 4
All Sws to Sw

MIDI
