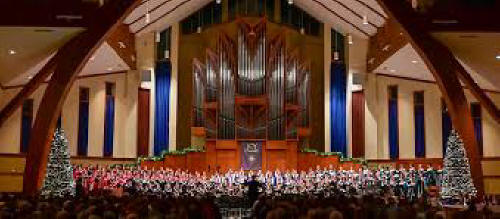

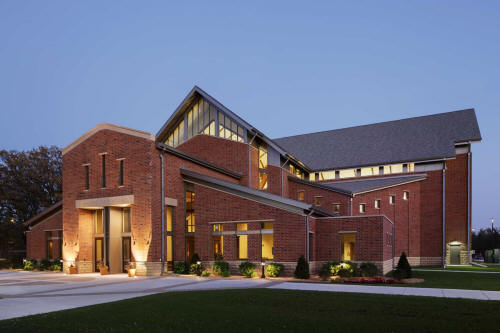

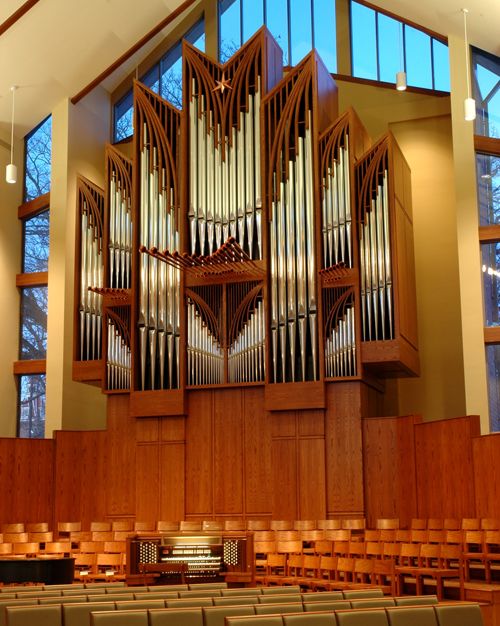

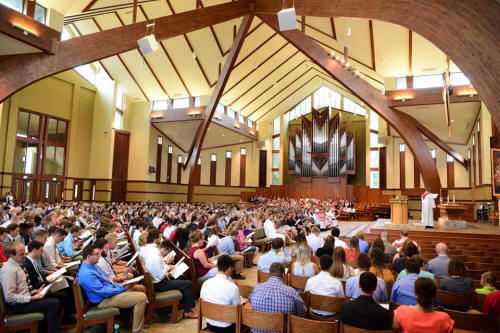

Builder: Schantz Organ Co, Opus 2292, 2010 Manuals: 3 Ranks: 57 Action: Electropneumatic; slider chests Notes: The Schantz organ was built in conjunction with the construction of the chapel. This is the first dedicated chapel in the college's history and has superb acoustics and a seating capadity of 1300. The organ is fully encased and speaks down the long axis of the room. There is choir seating directly in front of the 45' tall case for 100 singers, with expansion capability. The horizontal Trompeta Real features polished copper resonators and speaks on 15" of wind pressure from a blower located below in the basement. -- Information paraphrased from Pipenotes, 2010. All photos are public domain. HAUPTWERK 16' Praestant 73 8' Principal 61 8' Prestant -- 8' Bordun 61 8' Traversflöte (1-12 Bordun) 49 4' Octave 61 4' Koppelflöte 61 2.2/3' Quinte 61 2' Superoctave 61 1.3/5' Terz 61 1.1/3' Mixtur IV 244 2/3' Cymbel III (preparation) 16' Contratrompette (preparation) 8' Trompete 61 Tremblant 8' Trompeta Real (horizontal) 61 Chimes (preparation) SCHWELLWERK 16' Gedecktbass 73 8' Geigenprincipal 61 8' Viola di Gamba 61 8' Schwebung 54 8' Rohrflöte -- 4' Principal 61 4' Flauto Traverso 61 2.2/3' Nasatflöte 61 2' Hohlflöte 61 1.3/5' Terzflöte 61 2' Mixtur V 305 16' Fagotto 73 8' Trompette 73 8' Oboe 4' Klarine Tremblant 8' Vox Humana (preparation) Vox Humana Tremblant POSITIV ORGAN 16' Contragamba 73 8' Spitzprincipal 61 8' Gamba -- 8' Gamba Celeste 54 8' Holzgedackt 61 8' Flöte Coelestis II 110 4' Octav 61 4' Offenflöte 61 2' Kleinoctav 61 2' Flachflöte 61 1.1/3' Quintflöte 61 1' Scharff IV 244 16' Klarinettbass (preparation) 8' Klarinett 61 8' Englischhorn 61 Tremblant 8' Trompeta Real (Hauptwerk) Zimbelstern 5 bells PEDAL ORGAN 32' Violonbass (digital) 32' Untersatz (digital) 16' Principal 44 16' Praestant (Hauptwerk) 16' Contragamba (Positiv) 16' Subbass 56 16' Lieblichgedeckt (Schwellwerk) 8' Octavebass -- 8' Praestant (Hauptwerk) 8' Gamba (Positiv) 8' Subbass -- 8' Gedackt (Schwellwerk) 4' Choralbass 32 4' Choralflöte -- 2.2/3' Mixtur IV 128 32' Contraposaune (digital) 16' Posaunenbass 44 16' Contratrompete (Hauptwerk) 16' Fagotto (Schwellwerk) 16' Klarinettbass (Positiv) 8' Posaune -- 8' Trompete (Hauptwerk) 4' Klarine (Hauptwerk) 4' Rohrschalmei 32 8' Trompeta Real (Hauptwerk) Chimes (preparation) |
 |
 |
|
 |
|
 |
|
