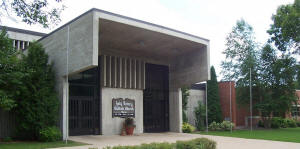

Holy Rosary Catholic Church

1403 Lake Avenue
Detroit Lakes, MN 56501

Builder: Moe Pipe Organ Company
Manuals: 4
Ranks: 66
Action: Electro-Mechanical
Sound sources:
19 ranks from existing organ (e)
7 ranks from purchased organ (p)
26 vintage ranks (v)
14 ranks purchased new (n)
30 Hauptwerk digital voices (d)
--Information and photos from Allen Moe and church website

Article about Holy Rosary
GREAT ORGAN
16' Double Open Diapason (n) 12 pipes
16' Violoncello (d)
8' First Open Diapason (n) 61 pipes
8' Second Open Diapason (n) 61
8' Gedeckt (e) 61
8' Hohl Flute (p) 61
8' Viol (choir)
8' Viol Celeste (choir)
8' Salicional (swell)
8' Voix Celeste TC (swell)
8' Orchestral Flute (swell)
8' Flute Celeste (swell)
8' Erzahler (choir)
8' Erzahler Celeste TC (choir)
8' Dulciana (p) 61
8' Unda Maris TC (v) 49
5-1/3' Quint (d)
4' First Octave (v) 61
4' Second Octave (v) 61
4' Harmonic Flute (v) 61
4' Nachthorn (e) 61
3-1/5' Tenth (d)
2-2/3' Twelfth (d)
2' Fifteenth (n) 61
2' Flute Fifteenth (from 4') 12
1-3/5' Harmonic 17th TC (v) 37
IV Full Mixture (n) 244
III Sharp Mixture (v) 183
V Grand Cornet (derived)
16' Double Trumpet (e) 12
8' Contra Trombone (pedal)
8' Trombone (pedal)
8' Tromba (v) 61
8' Trumpet (e) 61
4' Clarion (from trumpet) 12
Chimes (p)
8' Trompette en Chamade (n) 61
8' Pontifical Trumpet (n) 61
SWELL ORGAN
16' Lieblich Gedeckt
8' Violin Diapason (p) 61
8' Stopped Diapason (p) 61
8' Harmonic Flute (cb with Stopped D)
8' Salicional (p) 61
8' Voix Celeste TC (p) 49
8' Orchestral Flute (d)
8' Flute Celeste (d)
4' Principal (v) 61
4' Harmonic Flute (n) 61
4' Lieblich Flute (p) 12
4' Violina (p) 12
2-2/3' Nazard (v) 61
2' Doublette (v) 61
2' Harmonic Piccolo (n) 12
1-3/5' Seventeenth TC (v) 37
1-1/3' Larigot
1-1/7' Septieme (v) 37
1' Piccolo
8/9' None (v) 37
IV Plein Jeu (v) 244
V Mixture (d)
V Cornet (derived)
16' Waldhorn (d)
16' Basson (n) 12
8' Trompette (n) 61
8' Cornopean (d)
8' Hautbois (n) 61
8' Voix Humaine (v) 61
4' Clairon (n) 12
4' Clarion (d)
4' Hautbois Clairon (n) 12
Tremolo
RESONANCE/SOLO
8' Diapasons V
8' Diapasons VIII
Diapasons 8' & 4' (all 8' and 4' diapasons)
8' Solo Flutes VII
String Chorus XII (strings at 16', 8' 4')
Full Celestes XXVI (strings at 16', 8' 4')
VIII Gross Mixture (Great mixtures 2-2/3',4')
Gross Cornet XI
Voix Humaine Chorus III
16' Trompette en Chamade
16' Pontifical Trumpet
8' Trompette en Chamade
8' Pontifical Trumpet
8' Tuba Magna
8' Trompetta Real
4' Trompette en Chamade
4' Pontifical Trumpet
Glockenstern
CHOIR ORGAN
16' Bourdon
8' Geigen Diapason (e) 61
8' Chimney Flute (e) 61
8' Copula (e) 61
8' Viol (d)
8' Viol Celeste (d)
8' Erzahler (e) 61
8' Erzahler Celeste (e) 49
4' Geigen Octave (e) 61
4' Koppel Flute (e) 12
2-2/3' Quinte (e) 61
2' Gemshorn (e) 61
1-3/5' Tierce TC (e) 37
1-1/3' Larigot (from 2-2/3')
1' Sifflote
V Petite Cornet (derived)
III Scharff (e) 183
II Carillon (e) 122
16' Bass Cromorne (d)
8' Tuba Mirabilis (d)
8' Orchestral Oboe (d)
8' Tuba Minor (d)
8' Corno di Bassetto (d)
8' English Horn (p) 61
8' Clarinet (v) 61
4' Tuba Clarion (d)
4' Musette (d)
Zimbelstern
Tremolo
PEDAL ORGAN
64' Gravissima (d)
32' Double Open Wood (d)
32' Sub Bourdon (d)
32' Contra Violone (d)
16' Open Diapason (n) 12
16' Contrabass (great)
16' Subbass (great) 12
16' Bourdon (e) 32
16' Violone (d)
16' Violoncello (great)
16' Dolce Bass (ex)
16' Lieblich Gedeckt (swell) 12
10-2/3' Sub Quint
8' Open Bass (great)
8' Octave (e) 32
8' Bourdon (great)
8' Cello (swell)
8' Stopped Flute (choir)
8' Stopped Diapason (swell)
8' Melodia (great)
5-1/3' Quint
4' Choral Bass (v) 32
4' Viol (swell)
4' Harmonic Flute (great)
5-1/3' Full Mixture IV (great)
V Sharp Mixture (v) 160
32' Double Trombone (d)
32' Contra Bombarde (d)
16' Bombarde (d)
16' Double Trumpet (great)
16' Posaune (great)
16' Waldhorn (swell)
16' Basson (swell)
8' Tromba (n) 12
8' Trumpet (great)
8' Trompette (swell)
4' Clarion (n) 12
4' Hautbois (swell)
4' Musette (choir)
