Guardian Angels Catholic Church

3215 West Second Street
Chaska, MN

Builder: Gerald Orvold (1980)
Originally Schaefer Organ Co (1903)
Manuals: 2
Ranks: 16
Action: Direct Electric

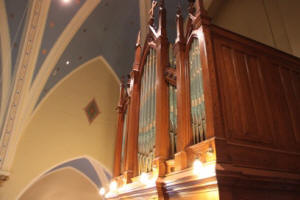

Notes: Original console was attached to the case, possibly tubular pneumatic.  Current console is at the rail to the left of the case.  Rebuild of existing 1903 organ.
--Information and photos from David Engen.
Last Update: 3/2009
GREAT ORGAN
16 Bourdon 61
8 Open Diapason 61
8 Rohrflute 61
4 Octave 61
4 Hohl Flute 61
2 2/3 Twelfth 61
2 Octave 61
SWELL ORGAN
8 Gedeckt 61
8 Viole d'Orchestra 61
8 Celeste 49
4 Geigen Principal 61
4 Flute Harmonic 61
2 2/3 Nazard (ext. 4’ Flute)
2 Principal 12
2 Piccolo 12
1 3/5 Tierce 49
8 Trumpet 61
Tremolo
PEDAL ORGAN
16 Bourdon 32
16 Lieblich (Gt)
8 Violon Cello 32
8 Gedeckt (Sw)
4 Choral Bass (Gt)
4 Flute (Gt)
8 Trumpet (Sw)
At least two of the original string ranks were cut off to make upperwork in 1980.  Relay is Peterson Diode Matrix.  Console stop action units were replaced in the 1990's with new OSI units (no longer sold).  Combination action is by setterboard in the console.  Blower replaced (Zephyr) in 2014.  Previous blower was too small and overheated.  Facade and pedal Violoncello toes are collapsed so pipes barely speak.
