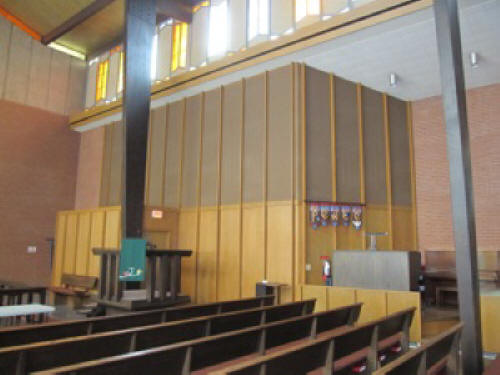

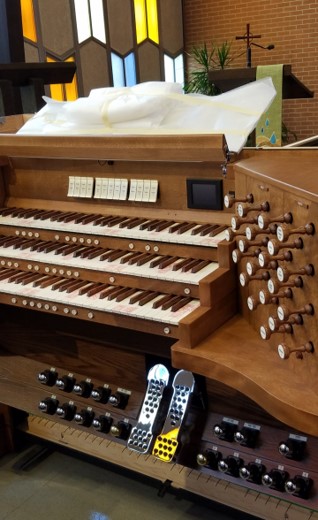

Builder: Casavant Freres Ltee. Opus 2830-B Casavant Frères Ltée., Op. 2830, 1965. Reeds re-voiced by Casavant in 2009. Manuals: 3 Ranks: 39 Action: Electro-pneumatic Notes: Updates from Ruth E. Hurlburt of the church, Jeff Scofield and Organ Historical Society as of 2014. Editor's note: I was organist here from 1971-73 when the pedal Gemshorn was added. The rumor was that Phelps was not pleased with the Krummhorn and had it re-made three times. Gerhard Krapf contributed to the design, and this organ was used by the University until Clapp Hall was completed in 1972. The organ is entirely behind a screen at the right front, with the Positiv closest to the console (upper photo). The choir loft is adjacent to the console. Details of the 2018 changes from Casavant, which included a new swell division (second photo), releathering, repacking stopped pipes, new relay/combination action, and a new 3-manual console. David Engen, 11/2020 GREAT ORGAN 16' Quintade 61 8' Principal 61 8' Gemshorn 17 (ext pedal 8' Gemshorn) 8' Rohrflöte 61 4' Octave 61 4' Spitzflöte 61 2' Octave 61 1.1/3' Mixture IV 244 8' Trompete 61 Great Unison Off POSITIV 8' Gedackt 61 4' Principal 61 4' Rohrflöte 61 2' Gemshorn 61 1.1/3' Quintflöte 61 2.2/3' Sesquialtera II 122 1/2' Scharf III 183 8' Krummhorn 61 Tremulant Positiv 16' Positiv Unison Off SWELL (new pipes and slider chest) 8' Spitzgambe 61 8' Schwebung BG 54 8' Spillflöte 61 4' Violin 61 4' Traversflöte 61 2' Schweizerflöte 61 8' Oboe 61 Tremulant Swell 16' Swell Unison Off Swell 4' PEDAL 32' Untersatz (resultant) 16' Subbasss 32 8' Principal 32 8' Gemshorn 32 (added 1972) 4' Octave 32 4' Gemshorn (ext) 10.2/3' Theorbo III (10.2/3' from Subbass; 6.2/5' and 4.4/7' from Gemshorn) 2' Mixture IV 128 16' Fagott 32 8' Trompete (Gt) 4' Schalmei 32 |
 |
 |
|
 |
|
|
Great to Pedal 8 Positiv to Pedal 8 Swell to Pedal 8 Swell to Pedal 4 Positiv to Great 16 Positiv to Great 8 Swell to Great 16 Swell to Great 8 Swell to Great 4 Great to Positiv 8 Swell to Positiv 16 Swell to Positiv 8 Swell to Positiv 4 |
|
