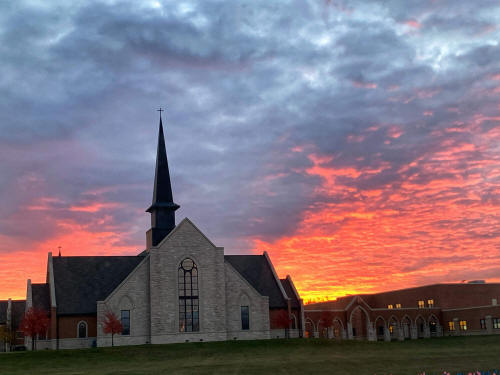

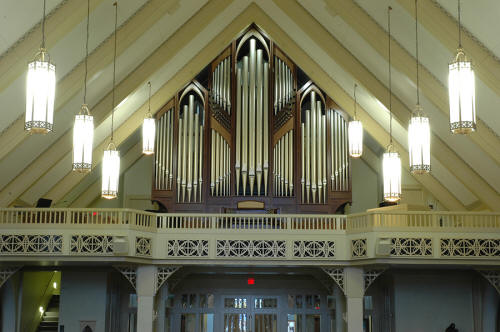

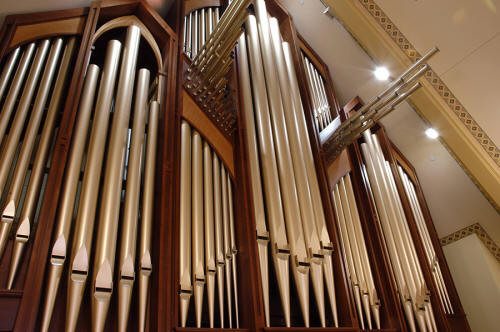

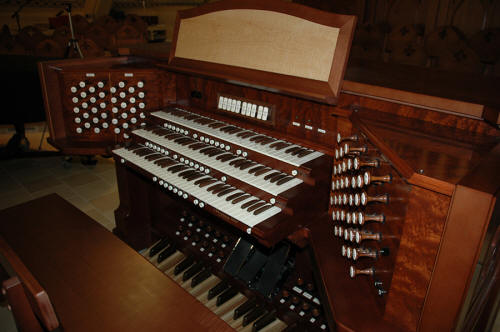

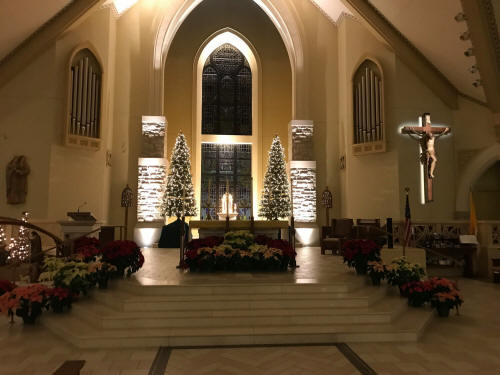

Builder: Berghaus Pipe Organ Builders, Opus 226, 2009 Incorporating W.W. Kimball Co., 1918 Manuals: 3 Ranks: 53 Pipes: 3019 Action: Electropneumatic Notes: St. Jerome parish constructed a new church dedicated in 2008. The Berghaus organ occupies both ends of the nave. The Great, Swell and Pedal divisions are new, located in the rear balcony. Pipework from the church's previous organ, W.W. Kimball, 1918, (2-manual, 15 ranks) was incorporated as the Antiphonal division, installed in a chamber above and to the left side of the chancel. The Diapason, November 1, 2010. Photos from Facebook and from the Berghaus website GREAT ORGAN 16' Contra Gemshorn 12 8' Principal 61 8' Flûte Harmonique 49 8' Bourdon 61 8' Gemshorn 61 8' Gemshorn Celeste TC 49 4' Octave 61 4' Flauto Traverso 61 (wood) 2-2/3' Quinte 61 2' Super Octave 61 1.1/2' Mixture IV 244 8' Trumpet 61 16' Trompette En-Chamade TC -- 8' Trompette En-Chamade 61 SWELL ORGAN 16' Rohrbourdon 12 8' Diapason 61 8' Rohrflöte 61 8' Salicional 61 8' Voix Celeste 56 4' Prestant 61 4' Koppelflöte 61 2-2/3' Nasard 61 2' Flageolet 61 1-3/5' Tierce 61 2' Plein Jeu IV 244 16' Fagotto 12 (L/2 ext 8' Oboe) 8' Trompette 61 8' Oboe 61 4' Clairon 12 (ext 8'Trompette) Tremulant 16' Trompette En-chamade (Gt) 8' Trompette En-chamade (Gt) ANTIPHONAL ORGAN 8' Open Diapason 61 8' Melodia 61 8' Viola da Gamba 61 8' Stopped Diapason 61 8' Dulciana 61 8' Unda Maris 49 4' Principal 61 4' Stopped Flute 61 2' Fifteenth 61 IV Full Mixture 244 8' Vox Humana 61 Tremulant 16' Trompette En-chamade (Gt) 8' Trompette En-chamade (Gt) 4' Trompette En-chamade (Gt) PEDAL ORGAN 32' Untersatz (Resultant) 16' Principal 32 16' Subbass 32 16' Contra Gemshorn (Gt) 16' Rohrbourdon (Sw) 8' Octave 12 8' Holzgedackt 12 8' Gemshorn (Gt) 8' Rohrflöte (Sw) 4' Choralbass 32 2.2/3' Mixture III 96 32' Kontra Posaune 12 16' Posaune 32 16' Fagotto (Sw) 8' Trompete 12 8' Oboe (Sw) 4' Klarine 12 8' Trompette En-Chamade (Gt) 16' Pedal Bourdon (Antiphonal existing) |
 |
 |
|
 |
|
 |
|
 |
|
