Capitol Drive Lutheran Church

5305 West Capitol Drive
Milwaukee, WI 53216

Builder: Reuter Organ Co., Opus 1155, 1955

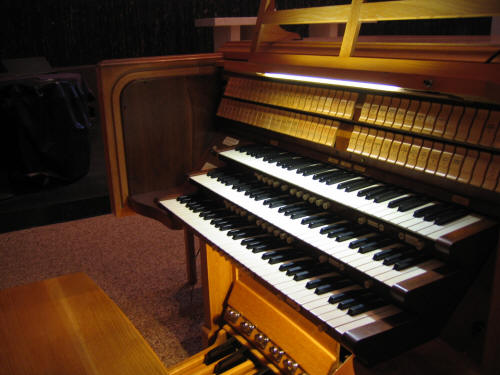

Manuals: 3
Ranks: 35
Action: Electropneumatic

Notes: A new SSL combination action and 2 Walker digital 32' stops were added in 1990's by Peters-Weiland. A complete restoration of the organ has been undertaken by the church. Phase 1 was completed in 2009 including releathering of six bellows/reservoirs. (A seventh bellow was previously re-leathered in 2001 and the static reservoir in basement was re-leathered in 2000. Both by Peters-Weiland.) Peterson Electro-Musical Diode Matrix Switching Relay was installed to replace the original Reuter relay, Peterson Electro-Musical RC-150 Electronic Swell Shade Operators (two) were installed in front chamber (Gt-SW), and both DC rectifiers were replaced by PJ Swartz Inc. Phase 2 was completed in the Gallery Division in 2017. Phase 2 in the Great and Swell awaits additional funding to complete.

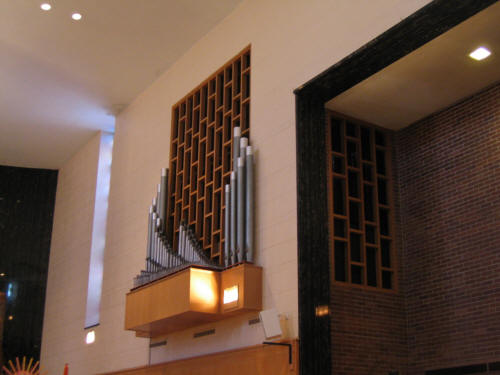

GREAT ORGAN (exposed in chancel)
8' Principal
4' Octave
2' Super Octave
III Fourniture

GREAT ORGAN (chambered but not expressive)
8' Hohlflote
4' Koppelflote
8' Viole de Gambe (Sw)
8' Viole Celeste (Sw)
8' Flauto Dolce (Sw)
8' Flute Celeste (Sw)
4' Flauto Dolce
    Chimes
    Gt to G 16, 4; Unison Off
    Sw to Gt 16, 8, 4
    Gallery to Gt 16, 8, 4

SWELL ORGAN (enclosed and expressive)
16' Flauto Dolce
8' Spitz Principal
8' Rohrflote
8' Viole de Gambe
8' Viole Celeste
8' Flauto Dolce
8' Flute Celeste
4' Principal
4' Flauto Traverso
4' Flauto Dolce
2-2/3' Nasard
2' Flauto Dolce
1-3/5' Tierce
16' Clarinet
8' Trumpet
8' Clarinet
8' Vox Humana
4' Clarion
    Tremolo
    Sw to Sw 16, 4; Unison Off

GALLERY ORGAN (enclosed and expressive)
8' Diapason
8' Concert Flute
8' Gemshorn
8' Gemshorn Celeste
4' Octave
4' Flute d'Amour
II Mixture
8' Fagotto
    Harp
    Tremolo
    Gallery to Gallery 16, 4; Unison Off
    Sw to Gallery 16, 8, 4

PEDAL ORGAN (Chancel division)
16' Principal
16' Bourdon
16' Flauto Dolce (Sw)
10-2/3' Dolce Quint (Sw)
8' Octave
8' Bourdon
8' Viole de Gambe (Sw)
8' Flauto Dolce (Sw)
4' Super Octave
4' Bourdon
16' Bombarde
16' Clarinet (Sw)
8' Bombarde
8' Clarinet (Sw)
4' Bombarde
    Gt to Ped 8, 4
    Sw to Ped 8, 4
    Gallery to Ped 8, 4

PEDAL (Gallery division)
16' Gedeckt
8' Gedeckt
