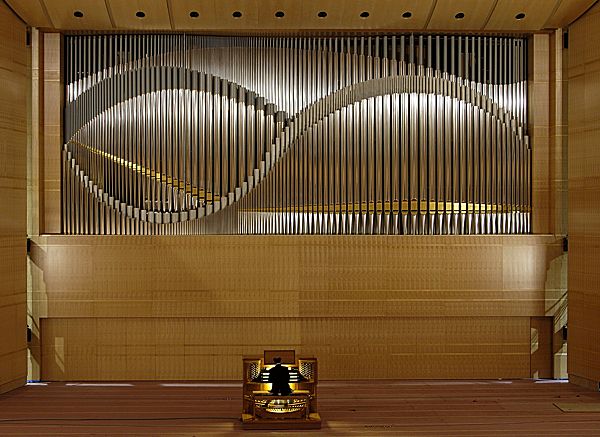

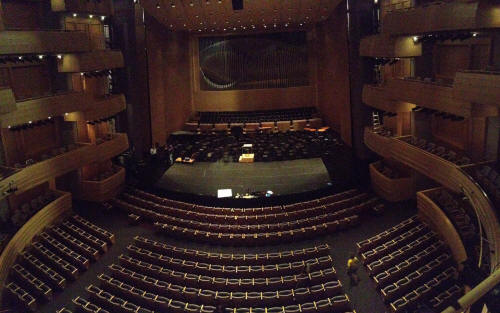

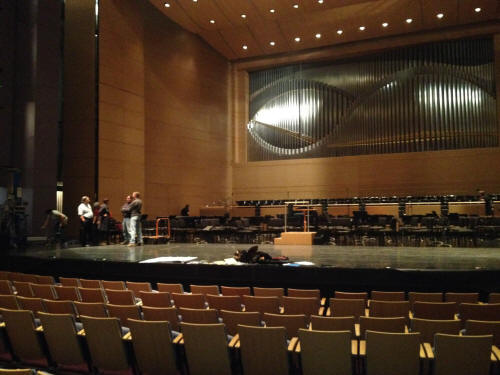

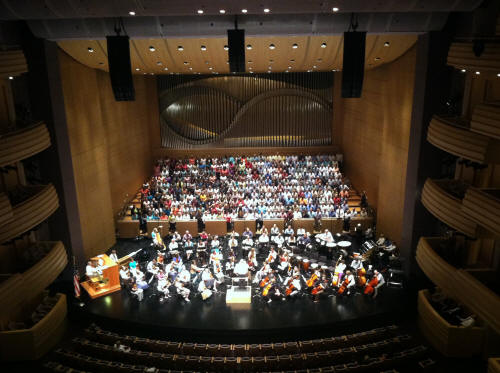

Builder: Orgelbau Klais, Bonn, Opus 1819, 2004 Manuals: 3 Ranks: 72 Pipes: 4,040 Action: Electropneumatic Notes: The organ is installed in a movable chamber on stage; the organ and chamber together weigh approximately 174 tons. The instrument moves forward on stage on 16 steel wheels on four steel rails, powered by a rigid push-chain drive at a rate of 1 foot per minute. It takes about 30 minutes to roll the organ into place for Madison Symphony Orchestra concerts into either a “regular” or “choral” configuration. When not in use, the organ stores in a “garage” at the rear of the stage, with doors that hinge out from the main structure. GREAT ORGAN (4-1/2" wind) 16' Principal 8' Principal 8' Offenflote 8' Salicional 8' Gedeckt 4' Principal 4' Rohrflote 2-2/3' Quinte 2' Octave V Cornett V Mixtura mayor 16' Trompete 8' Trompete SWELL ORGAN, enclosed (4-1/2" wind) 16' Bordun 8' Tibia 8' Bordun 8' Viola da Gamba 8' Voix Celeste 4' Fugara 4' Transversflote 2-2/3' Quintflote 2' Octavflote 1-3/5' Terzflote IV Plein Jeu 16' Basson 8' Trompette Harmonique 8' Basson-Hautbois 4' Clairon harmonique Tremulant CHOIR ORGAN, enclosed (4″ wind) 8' Geigen Principal 8' Suavial 8' Rohrflote 8' Gemshorn 8' Unda maris 4' Octave 4' Viola 2' Waldflote 2-2/3' Quinte 1-3/5' Terz IV Mixtura minor 8' Clarinet Tremulant SOLO, enclosed (11″ wind) 8' Principal 8' Harmonic Flute 8' Stentor Gamba 8' Gamba Celeste 16' Tuba 8' Tuba 8' French Horn PEDAL ORGAN (5″ wind) 64' Vox Balinae (Resultant) 32' Double Open 32' Untersatz 16' Open Wood 16' Violon (Gt) 16' Bourdon (Ch) 16' Subbass 8' Octavbass 8' Harmonic Flute (Solo) 8' Stentor Gamba (Solo) 8' Gedackt 4' Octave 32' Contra Bombarde 16' Posaune 16' Tuba (Solo) 8' Trompete 4' Clairon COUPLERS Sw to Gt 16, 8, 4 Ch to Gt 16, 8, 4 Solo to Gt 16, 8, 4 Sw to Sw 16, UO, 4 Sw to Ch 16, 8, 4 Solo to Sw 8, 4 Solo to Ch 8, 4 Gt to Gt 16, UO, 4 Ch to Ch 16, UO, 4 Gt to Pd 8, 4 Sw to Pd 8, 4 Ch to Pd 8, 4 Solo to Pd 8, 4 Pedal Divide |
 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
