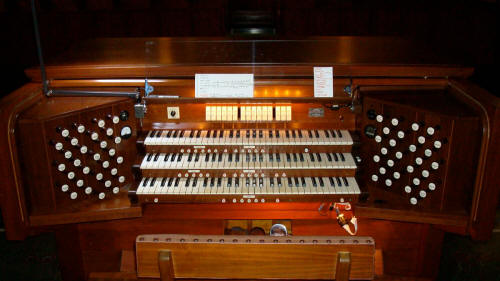

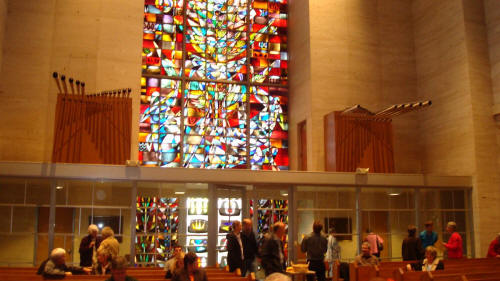

Builder: Casavant Frères Ltée, Opus 2529, 1959 revised Schlicker Organ Co./Peters, Weiland & Co., ca. late 1990s Manuals: 3 Ranks: 40/enlarged to 45 1995 Action: Electropneumatic Notes: The organ was designed by Prof. Harvey at the UW Madison School of Music. The tonal design was done by Lawrence Phelps, his first instrument for the Casavant firm. The Abbey church is a fairly large stone building with stunning acoustics. Additions were fabricated by the Schlicker Organ Co., Buffalo, New York, ca. late 1990s and early 2000s, with the blessing of the Casavant company, and installed by Peters, Weiland & Co., of Milwaukee, WI. Additions include a III Cymbale on the Great, an 8' Voix Humana on the Swell, an 8' Trompette Premontre en chamade on the Choir above the west door, and a 32' Soubasse and 32' Bombarde (electronic) on the Pedal. A Zimbelstern (toe stud) was also added. The console of the instrument has been completely overhauled with the addition of new stop knobs and an eight level solid state memory bank. Photos from Facebook and Rodney Weed/OHS. 2020 GREAT ORGAN 16' Quintaton 61 8' Diapason 61 8' Bourdon 61 8' Gemshorn 61 4' Octave 61 2-2/3' Octave Quint 61 2' Super Octave 61 1.1/3' Fourniture IV 244 Cymbale III * 8' Trumpette Harmonique (Ch) SWELL ORGAN 8' Principal 68 8' Rohrflöte 68 8' Salicional 68 8' Voix Céleste GG 61 4' Octave 68 4' Flauto Traverso 68 2' Plein Jeu III 183 16' Contra Fagotto 68 8' Trompette 8' Hautbois 68 * 8' Vox Humana 68 * 4' Rohrschalmei 68 Tremulant CHOIR ORGAN 8' Cor de nuit 68 8' Spitzflöte 68 8' Spitzflöte Céleste GG 61 4' Prestant 68 4' Koppelflöte 68 2-2/3' Nazard 61 2' Blockflöte 61 1-3/5' Tierce 61 8' Krummhorn 68 8' Trompette Harmonique 8' Trompette Premontre en chamade * PEDAL ORGAN 32' Soubasse (digital) * 16' Contrebasse (metal) 32 16' Bourdon 32 16' Quintaton (Gt) 8' Principal 32 8' Bass Flute (ext) 12 8' Quintadena (Gt) 4' Choral Bass (ext) 12 2.2/3' Mixture III 96 32' Bombarde (digiital) * 16' Bombarde 32 16' Fagotto (Sw) 8' Bombarde (ext) 12 4' Clarion (ext) 12 Zimbelstern * * additions to original specification |
 |
 |
|
 |
|
 |
|
 |
|
