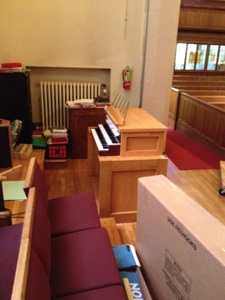

Builder: David Engen 2012 Manuals: 2 Registers: 27 Action: Electro-pneumatic chests Notes: An SSOS switching system and a used 4-manual Moller console had been added after the 1976 Moller rebuild. The stop names on the knobs did not correlate to the actual stops, making the organ difficult to understand. An enormous pneumatic combination action filled a room directly below the console. We acquired a Klann console and completely reworked the stoplist into a simpler and more useful church organ with a new electric combination action. Some used pipes were acquired, the harp was removed so the two stops under it could again be used, and the Erzähler and its Celeste found their way into the organ at Trinity Lutheran in Belle Plaine, MN. The Gross Flute received stoppers and became the Bourdon. Some of the original Wangerin leather remains in the wind chests, leading to unusual ciphers. At the time of the work, the church did not have funds to remove that leather. GREAT ORGAN 16' Viola (ext Viola Pomposa) 8' Diapason (61 Moller pipes) 8' Bourdon (61 Wangerin pipes) 8' Concert Flute (61 Wangerin pipes) 8' Viola Pomposa (61 Moller pipes) 8' Viola Celeste (49 Moller pipes) 4' Octave (61 Moller pipes) 4' Harmonic Flute (61 Wangerin pipes) 2.2/3' Twelfth (61 pipes) 2' Fifteenth (61 pipes) 2' Piccolo (ext Concert Flute) 1.3/5' Seventeenth (49 pipes) 1.1/3' Nineteenth (12 pipes) 2' Mixture IV (244 Moller pipes, reworked) 8' Bombarde (61 Moller pipes) 8' Clarinet (61 Wangerin pipes) Tremulant SWELL ORGAN 16' Lieblich Gedeckt (61 Wangerin pipes) 8' Rohrflute (61 pipes) 8' Salicional (61 pipes) 8' Voix Celeste (49 pipes) 4' Geigen Principal (61 pipes) 4' Lieblich Gedeckt (24 Wangerin pipes) 2.2/3' Lieblich Nazard (5 pipes) 2' Geigen Octave (12 pipes) 2' Plein Jeu III (183 Moller pipes) 8' Trompette (61 Moller pipes) 8' Oboe (61 Moller pipes) 4' Clarion (61 Moller pipes) Tremulant PEDAL ORGAN 32' Resultant 16' Diapason (12 Wangerin pipes) 16' Bourdon (12 Wangerin pipes) 16' Lieblich Gedeckt (Sw) 8' Diapason (Gt) 8' Viola (Gt) 8' Bourdon (Gt) 8' Lieblich Gedeckt (Sw) 4' Diapason (Gt) 4' Bourdon (Gt) 4' Concert Flute (Gt) 16' Bombarde (Gt) 8' Bombarde (Gt) 4' Bombarde (Gt) |
 |
 |
|
 |
|
