Trinity Evangelical Lutheran Church

500 West Church Street
Belle Plaine, MN 56011

Builder: Grandall and Engen LLC (2013)
Originally: Ulm Orgelwerke (1970)
Manuals: 3
Stops: 26
Registers: 31
Action: Direct electric/electro-mechanical chests.
Information and photos from David Engen.
Last Update: 11/2014

 Trinity
HAUPTWERK (II)
16 Pommer 56
8 Praestant 56
8 Rohrgedackt 56
4 Octave 56
2-2/3 Quinte 56
2 Kleinoctave 56
1-1/3 Mixtur IV 224
2/3 Auszug II
8 Trompeten Royal 56

 Trinity
POSITIV (I)
8 Holzgedeckt 56
4 Praestant 56
4 Koppelflöte 56
2-2/3 Nazat 56
2 Waldflöte 56
1-3/5 Terz 56
I Scharf III 168
8 Krummhorn 56
Tremulant

 Trinity
CHORWERK (III)
8 Stillgedackt (pf)
8 Erzähler 56
8 Erzähler Celeste 44
4 Spitzflöte (pf)
2 Principal (pf)
2-2/3 Sesquialtera II (pf)
1-1/3 Sifflöte (pf)
1 Nachthorn (pf)
8 Schalmey (pf)
8 Trompeten Royal HW

 Trinity
PEDAL ORGAN
16 Praestant 32
16 Subbass 32
16 Pommer HW
10 2/3 Quintbass (Pommer)
8 Octavebass 32
8 Gemshorn 32
8 Pommer (HW)
4 Choralbass 32
2-2/3 Mixture IV 128
16 Posaune 32
4 Dulcian 32
8 Trompeten Royal HW


Rebuild/Restoration:
  • Replace relay system with Syndyne 8400, which includes multiple-memory combination action.

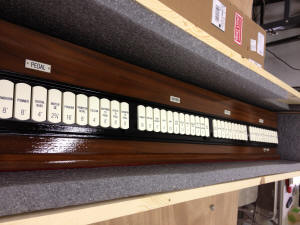

  • Replace name board (new name board shown below)
  • Entire organ cleaned; new walk boards and ladders and lights added.
  • Moller Erzahler and Celeste added (from Calvary Lutheran, Minneapolis)
 Trinity
  • Pommer extended from 32 to 56 notes with new wood pipes from John Nolte in Milwaukee.
  • 16' Subbass added to pedal (used pipes, purchased from Nolte)
  • Pedal pressure raised to 3", pedal revoiced for more bass.
  • Blower silenced
 Trinity
Note: during Positiv cleaning and repairs, a mouse nest was found inside the chest.
