Builder: Holtkamp Organ Co (2011) Originally Aeolian-Skinner (Opus 1446, 1964) Manuals: 3 Divisions: 5 Ranks: 52, (pf) 61 Stops: 41 (pf) 47 Pipes: 3085 (pf) 3549 Action: Pitman, electropneumatic; Great is slider Notes: This Aeolian-Skinner instrument was purchased from Macalester College in St Paul. Holtkamp was hired to move, rebuild and install the organ. To see the original Macalester installation go to St. Paul, Macalester College, Wallace Aud, Aeolian-Skinner on this website. --Information and photo from Senior Organist, Mark Ertl. Photo from the OHS Archive. Last Update: 1/2012 |
 |
 |
|
|
GREAT ORGAN 16 Violone (1-7 new pipes, 8-61 existing, all on new chests) 61 8 Diapason (Existing pipes on new chests) 61 8 Violone (Existing pipes rescaled on new chests) 12 8 Dulciana (New pipes and chests) 61 8 Nachthorn (New pipes and chests) 17 8 Rohrbourdon (Existing pipes rescaled on new chests) 61 4 Octave (Existing pipes rescaled on new chests) 61 4 Openflute (Existing pipes rescaled on new chests) 61 II Sesquialtera (Existing pipes rescaled on new chests) 122 2 Fifteenth (Existing pipes rescaled on new chests) 61 IV Mixture 1-1/3 (Existing pipes rescaled on new chests 244 16 Double Trumpet (prepared for) 8 Trumpet (1-44 existing pipes rescaled on new chests, 45-61 new pipes and chests) 61 4 Clarion (New pipes and chests) 12 16 Tuba Harmonique 0 8 Tuba Harmonique (New pipes and chests) 61 8 Reformation Trumpet (pf) Tremulant Great 16 Great Unison Off Antiphonal of Great (pf) Glockenspiel Zimbelstern |
 |
|
SWELL ORGAN 16 Lieblich Gedackt(Existing pipes rescaled, 1-18 on new chests, rest on existing chests) 61 8 Geigen Diapason (New pipes and chests) 61 8 Spitz Viol (Existing pipes, 1-6 new unit) 61 8 Viol Celeste (Existing pipes, 1-6 new unit) 61 8 Hohlflute (Existing pipes rescaled on new chests) 61 8 Lieblich Gedackt (Existing pipes rescaled on existing chests) 61 4 Octave Geigen (New pipes and chests) 61 4 Traverse Flute (New pipes on existing chest) 61 2 Zauberflute (Existing pipes rescaled on existing chests) 61 III-V Plein Jeu 2-2/3 (Existing pipes rescaled on existing chests) 269 16 Basson (Existing pipes rescaled on existing chests) 61 8 Trompette (1-12 new pipes, 13-61 existing, on existing chests) 61 8 Hautbois (New pipes on existing chests) 61 16 Tuba Harmonique (Gt) 16 Reformation Trumpet (pf) 16 Double Trumpet (Gt) 8 Tuba Harmonique (Gt) 8 Reformation Trumpet (pf) 8 Trumpet (Gt) Tremulant Sw 16 Sw Unison Off Sw 4 Antiphonal on Swell |
PEDAL ORGAN 32 Violone (12 electronic tones) 0 32 Bourdon Bass (12 electronic tones) 0 16 Principal (1-18 new pipes, 19-32 existing, new chests) 32 16 Violone (Gt) 16 Bourdon (Existing pipes rescaled on new chests) 32 16 Lieblich Gedackt (Sw) 16 Flute (pf) 12 8 Octave (Existing pipes rescaled on new chests) 12 8 Violone (Gt) 8 Octave Bourdon (new pipes and chests) 12 8 Nachthorn (1-12 new pipes rescaled on new chests) 32 8 Lieblich Gedackt (Sw) 4 Superoctave (Existing pipes rescaled on new chests) 32 4 Nachthorn (Existing pipes rescaled on new chests) 12 2 Nachthorn (New pipes and chests) 12 IV Mixture (pf) 128 32 Trombone Bass (12 electric tones) 0 16 Trombone (New pipes and chests) 32 16 Double Trumpet (pf) (Gt) 8 Trompette (pf) 32 8 Trombone (New pipes and chests) 12 16 Bassoon (Sw) 8 Bassoon (Sw) 4 Trompette (pf) 12 4 Clairon (Existing pipes on new chests) 12 8 Tuba Harmonique (Gt) 8 Reformation Trumpet (pf) (Ant.) Glockenspiel Antiphonal on Pedal (pf) |
|
CHOIR ORGAN 8 Viola Pomposa (Existing pipes rescaled on new chests) 8 Viola Celeste g8 (Existing pipes rescaled on existing chests) 54 8 Bourdon (Existing pipes rescaled on new chests) 61 8 Flauto Dolce (Existing pipes, 1-6 new unit) 61 8 Flute Celeste (Existing pipes, 1-6 new unit) 61 4 Octave (Existing pipes rescaled on existing chests) 61 4 Rohrflute (Existing pipes rescaled on existing chests) 61 2-2/3 Nazard (Existing pipes rescaled on existing chests) 2 Doublette (Existing pipes rescaled on existing chests) 61 1-3/5 Tierce (Existing pipes rescaled on existing chests) 61 III Scharf 1-1/3 (Existing pipes rescaled on existing chests) 244 16 Cromorne (New pipes and chests) 61 8 English Horn (New pipes on existing chests) 61 8 Cromorne (New pipes and chests) 12 16 Tuba Harmonique (Gt) 8 Tuba Harmonique (Gt) 8 Reformation Trumpet (pf) Tremulant Ch 16 Ch Unison Off Ch 4 Antiphonal on Choir Glockenspiel |
ANTIPHONAL ORGAN (Prepared for) 8 Gemshorn (Existing pipes rescaled on new chests) 61 8 Flute (1-12 new pipes, rest existing pipes) 61 4 Octave (Existing pipes rescaled on new chests) 61 4 Flute (Existing pipes rescaled on new chests) 12 2 Gemshorn (New pipes and chests) 24 8 Reformation Trumpet (New Pipes and chests) 61 |

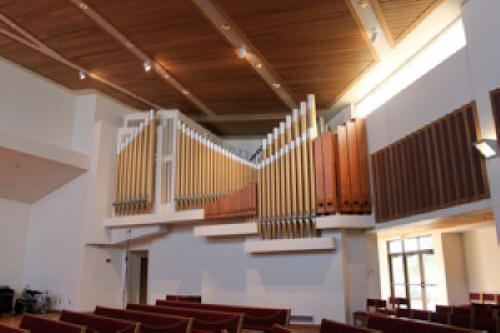

| Swell and Choir are stacked on the left, with blower, reservoirs and swell motors in a mechanical room to their left. Great (on slider chest) is in the center, with pedal behind, to the right and in the facade. Skinner chests are used in the Swell and Choir, front to back. At Macalester these chests were lined up end to end, making relatively shallow but wide chambers. Note how the ceiling descends into the organ, restricting somewhat the pipe height at the back of the organ area. It also acts as a megaphone to project the organ into the room. This restricted height is perhaps the main reason the original 32' octaves of the Macalester Bourdon and Trombone could not be used. |
