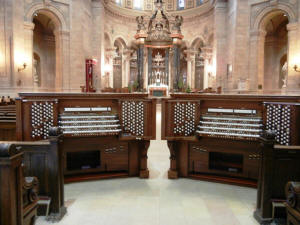

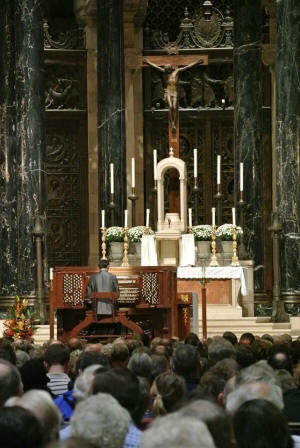

| Tonal and mechanical rebuild, with additions, of Aeolian-Skinner, Opus 1398, and tonal restoration of E. M. Skinner, Opus 518. Two identical 4-manual consoles provided to control resources of both instruments, from the Sanctuary or the Gallery. Photo and specification from Lawrence Lawyer, Acting Director of Sacred Music. | |
|

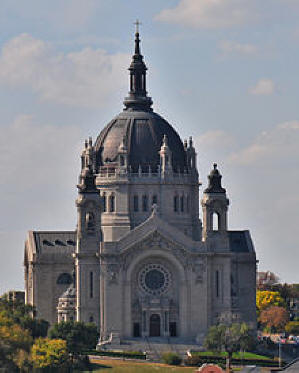

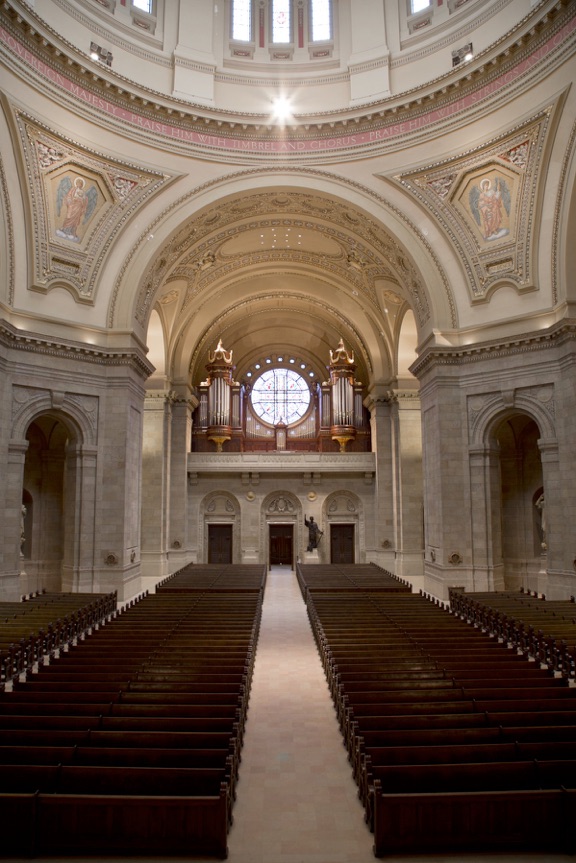

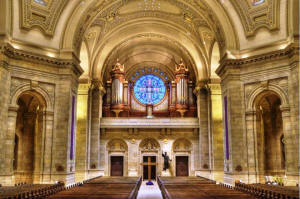

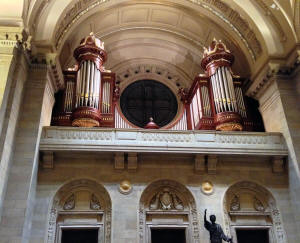

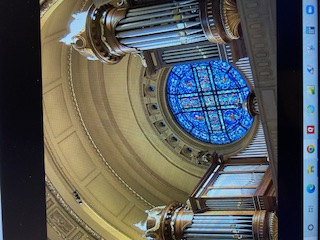

Builder:Quimby Pipe Organs, Inc, 2013 Manuals: 4 Ranks: 86 Action: Electro-pneumatic Building designed by Emmanuel Louis Masqueray. Construction funded in part by James J. Hill (Great Northern Railroad) whose 44,000 square foot mansion is across the street. Organ case based on a design by Masqueray by architect Duncan G. Stroik of Notre Dame. The case was produced by Agrell Architectural Woodworking and is made of walnut with gilded accents. A feature article by Daniel Hancock can be found in The American Organist, April, 2015. |
 |
|
GALLERY GREAT ORGAN - 13 Ranks 16 Violone 73 pipes 8 Principal 61 8 Violone (ext) 61 notes 8 Bourdon 61 8 Spitz Flute 61 4 Octave 61 4 Koppel Flute 61 2-2/3 Twelfth 61 2 Fifteenth 61 1-3/5 Seventeenth 49 III-IV Mixture 232 8 Bombarde Pd 61 notes from Pd 8 Cromhorne Ch 61 notes from Ch Gt to Gt 16, 4, Unison Off Zimbelstern GALLERY SWELL ORGAN - 14 Ranks 16 Rohr Bordun (ext) 61 notes from Sw 8 Geigen Principal 68 pipes 8 Rohr Flute 80 8 Viola da’Gamba 68 8 Voix Celeste 68 4 Octave 68 4 Flauto Traverso 68 2 Spindle Flute 61 IV Plein Jeu 244 16 Hautbois (ext) 61 notes from Sw 8 Trompette 80 8 Hautbois 80 4 Clarion 68 Tremulant Sw to Sw 16, 4, Unison Off 8 Pontifical Trumpet (BOMB) 61 [Does not couple. When drawn, only this stop will play on the Swell manual, but all other Swell stops may be drawn and coupled to other manuals] GALLERY CHOIR ORGAN - 15 Ranks 16 Viola Pomposa (ext) 61 notes 8 Gedeckt 68 8 Viola Pomposa 80 8 Viola Pomposa Celeste 68 8 Erzahler 61 8 Erzahler Celeste 56 4 Spitz Principal 68 4 Block Flute 68 2-2/3 Nazard 61 2 Zauber Flute 61 1-3/5 Tierce 61 III Mixture 1-1/3 183 8 Cromorne 68 8 English Horn tc 49 Tremulant Ch to Ch 16, 4, Unison Off GALLERY BOMBARDE ORGAN - 13 Ranks 16 Violone 61 notes from Gt 8 Open Diapason 49 8 Flute Harmonique 49 4 Octave 61 2-2/3 Quint 61 2 Super Octave 61 V Mixture 134 (Also draws above 12th & 15th) VI Tierce Mixture 49 (Adds 17th to Mixture V) VII Harmonics Mixture 49 16 Trompette Harmonique (ext) 61 8 Trompette Harmonique 73 8 Hautbois Sw 73 4 Clarion Harmonique 61 8 Pontifical Trompette 61 [Does not couple. When drawn, only this stop will play on the Swell manual, but all other Swell stops may be drawn and coupled to other manuals] GALLERY PEDAL ORGAN - 4 Ranks 32 Bourdon 56 16 Principal 32 16 Violone Gt 16 Bourdon (ext) 16 Viola Pomposa Ch 16 Rohr Bordun Sw 8 Octave 44 8 Violone Gt 8 Bourdon (ext) 8 Rohr Flute Sw 4 Choral Bass (ext) 4 Harmonic Flute Bomb 4 Nachthorn 32 IV Pedal Mixture 128 32 Contra Bombarde 85 16 Bombarde (ext) 16 Trompette Harmonique Bomb 16 Hautbois Sw 8 Bombarde (ext) 8 Hautbois Sw 8 Pontifical Trompette Bomb 4 Bombarde (ext) 4 Hautbois Sw |
SANCTUARY GREAT ORGAN - 6 Ranks 8 Diapason 73 pipes 8 Wald Flute 73 8 Gemshorn 73 4 Octave 73 4 Flute 61 2 Fifteenth 61 Gt to Gt 16, 4, Unison Off SANCTUARY SWELL ORGAN - 17 Ranks 16 Bourdon 73 8 Diapason 73 8 Gedeckt 73 8 Salicional 73 8 Voix Celeste 73 8 Flauto Dolce 73 8 Flute Celeste 61 4 Octave 73 4 Flute Triangulaire 73 V Mixture 305 (restored) 16 Fagotto 73 8 Cornopean 73 8 Oboe 73 Tremulant Sw to Sw 16, 4, Unison Off SANCTUARY CHOIR ORGAN - 6 Ranks 8 Concert Flute 73 8 Dulciana 73 4 Harmonic Flute 73 2-2/3 Nazard 61 2 Piccolo 61 8 Clarinet 73 Tremulant Ch to Ch 16, 4, Unison Off Chimes Echo Chimes SANCTUARY PEDAL ORGAN - 1 Rank 32 Resultant -- 16 Open Diapason 44 16 Echo Lieblich Sw 8 Octave (ext) 8 Gedeckt Sw 16 Fagotto Sw 8 Fagotto Sw Echo Chimes |
 |
 |
 |
 |
 |
 |
 |
|
